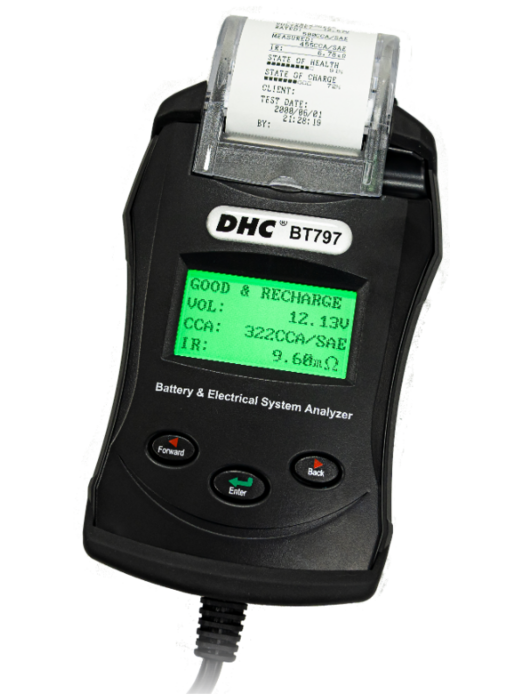

BT797

Battery & Electrical System Tester

BT797 is a professional level battery and electrical system tester upgraded from its well-known predecessor BT747.Many new features such as the detachable clamp set, 4-color LCD, In-vehicle test have all been implemented into the BT797.

Features:

  • Battery, Cranking, & Charging system tester

    6V & 12V battery / 12V START-STOP battery test / 12V & 24V cranking/charging system test / IR test

  • 4 Color LCD

    Shows different color for different test result.

  • Built-in 2” Thermal Printer

    Prints a receipt of test result with date.

  • Start/Stop Battery Test Available

    Performs accurate test for Start/Stop batteries.

  • In Vehicle Test

    Combines battery test & system test into a single task, providing a print out with a complete test result.

  • Temperature Compensation

    Different temperature compensation above/below 0ºC (32ºF).

  • DIY Information

    Able to edit the customized information on the printout receipt.

  • Detachable Cable

    Detachable cable for easy replacement.

  • Print Last Result

    Able to directly print last test result without re-testing

  • Backward Function Key

    Selected wrong setting? Hold the enter key and go back to the previous stage

BT797 Product Specification

Model Number BT797
Application 6V & 12V battery / 12V START-STOP battery test
12V & 24V cranking/charging system test
IR test
LCD 4-line & 4-color large LCD with adjustable brightness
Printer 2” thermal printer
Supported Battery Types Flooded, VRLA/GEL, AGM Flat, AGM Spiral, EFB
Battery Ratings CCA/SAE, EN, JIS, DIN, IEC, CA/MCA
Operating Range 40~2,000 CCA(SAE)
Voltage Range 1V ~ 31.5V
Dimensions (mm) 255 (L) x 135(W) x 45(H)
Detachable Cable Yes
Languages English, French, Spanish, German, Italian, Portuguese
