AE12000E

120-Amp Multi-Purpose Battery Charger and Power Supply

The AE12000E is a multi-purpose battery charger and power supply. With the capability to provide 120A of sustained output, it is suitable for a diverse set of applications.

Features:

  • It is a Power Supply

    Capable of sustained 120A output.
    Perfect for ECU and module programing.

  • It is a Battery Charger

    Up to 100A of charing current.
    Compatible with most lead-acid batteries and Lithium (LFP) batteries.

  • It is a Showroom Power Supply

    Supply 50A of power in silence.
    Great for demostrating the latest automotive technology, like digital cockpit, infotainment system, and etc.

  • It is a Memory Saver

    Retain ECU and module memories while changing battery.

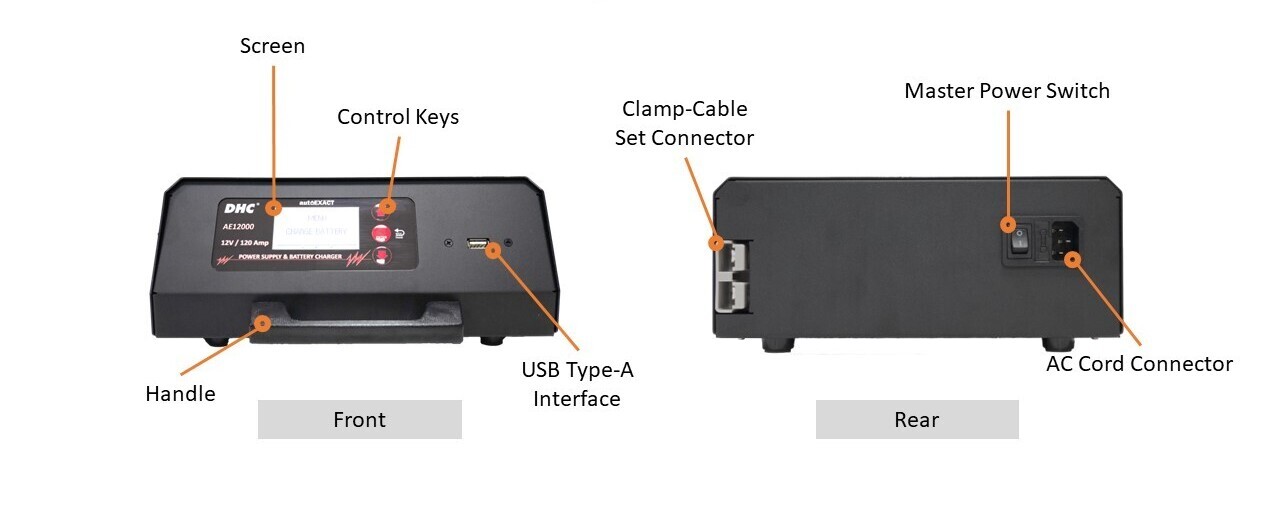

Product Walk Around


AE12000E Product Specification

Model Number AE12000E
Battery Types 12V Flooded, AGM Flat/Spiral, EFB, VRLA, GEL, Lithum (LFP)
Charge Capacity 20Ah - 1000Ah
Maximum Sustained Output
(Mode Dependent)		 Battery Charging Mode: 100 Amps
Power Supply Mode: 120 Amps
Showroom Mode: 50 Amps
Memory Saver Mode: 30 Amps
Clamp-Cable Length 3m or 5m (approx. 9.8ft or 16.4ft)
Detachable
AC Cord 3m (approx. 9.8ft)
Detachable
AC Input 220 - 240V 50/60Hz
Protection
(Message and Buzzer)		 Reverse Polar
Short Clamp
Over Voltage
Over Current
Over Temperature
Operating Temperature 0 - 40°C (32 - 104°F)
With Active Cooling
Storage Temperature -20 - 60°C (-4 - 140°F)
Firmware Update Yes, via USB Type-A port.
Certification CE and CB
IP Rating IP20
Display 2-inch Backlit LCD
Input Device Hardware Button
(Up/Down/Enter)
Dimensions (L x W x H) 402 x 255 x 110 mm
(approx. 15.8" x 10" x 4.3")
Wall Mount Support Yes, with UI rotate.
Operating Languages English, French, German, Spanish, Italian, Portuguese
